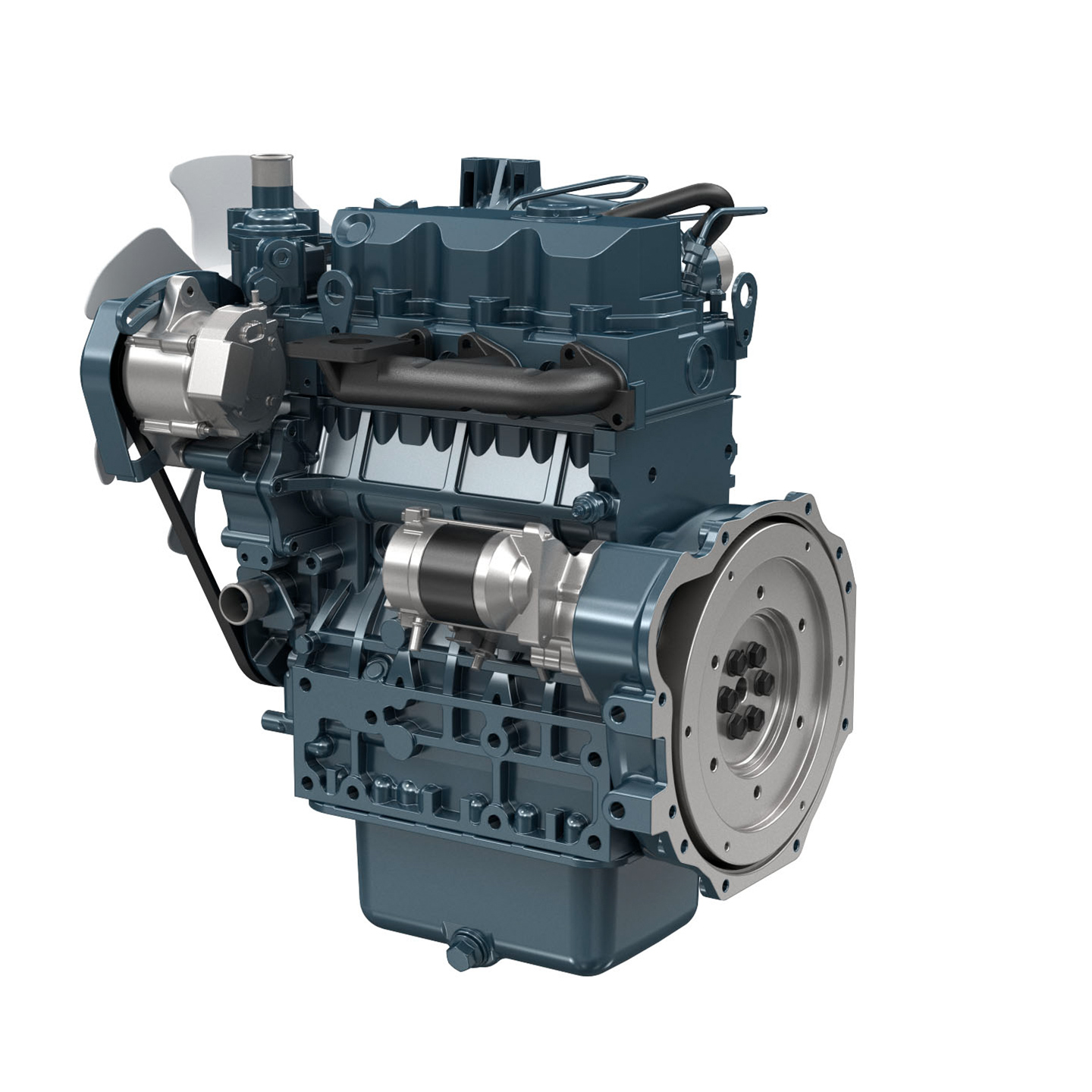

- Engine model
- D1703-M-E2B
- Emission regulation
- EPA/CARB Tier 2 level + EU Stage IIIA level
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 3
- Bore and stroke
- mm (in)
- 87.0 x 92.4 (3.43 x 3.64)
- Displacement
- L (cu.in)
- 1.647 (100.5)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Rated output / speed*1
- kW (HP) / rpm
- 27.4 (36.7) / 2800
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 111.7 (82.4) / 1700
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 547 x 495 x 679 (21.5 x 19.5 x 26.7)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 148 (326)
