- Engine model

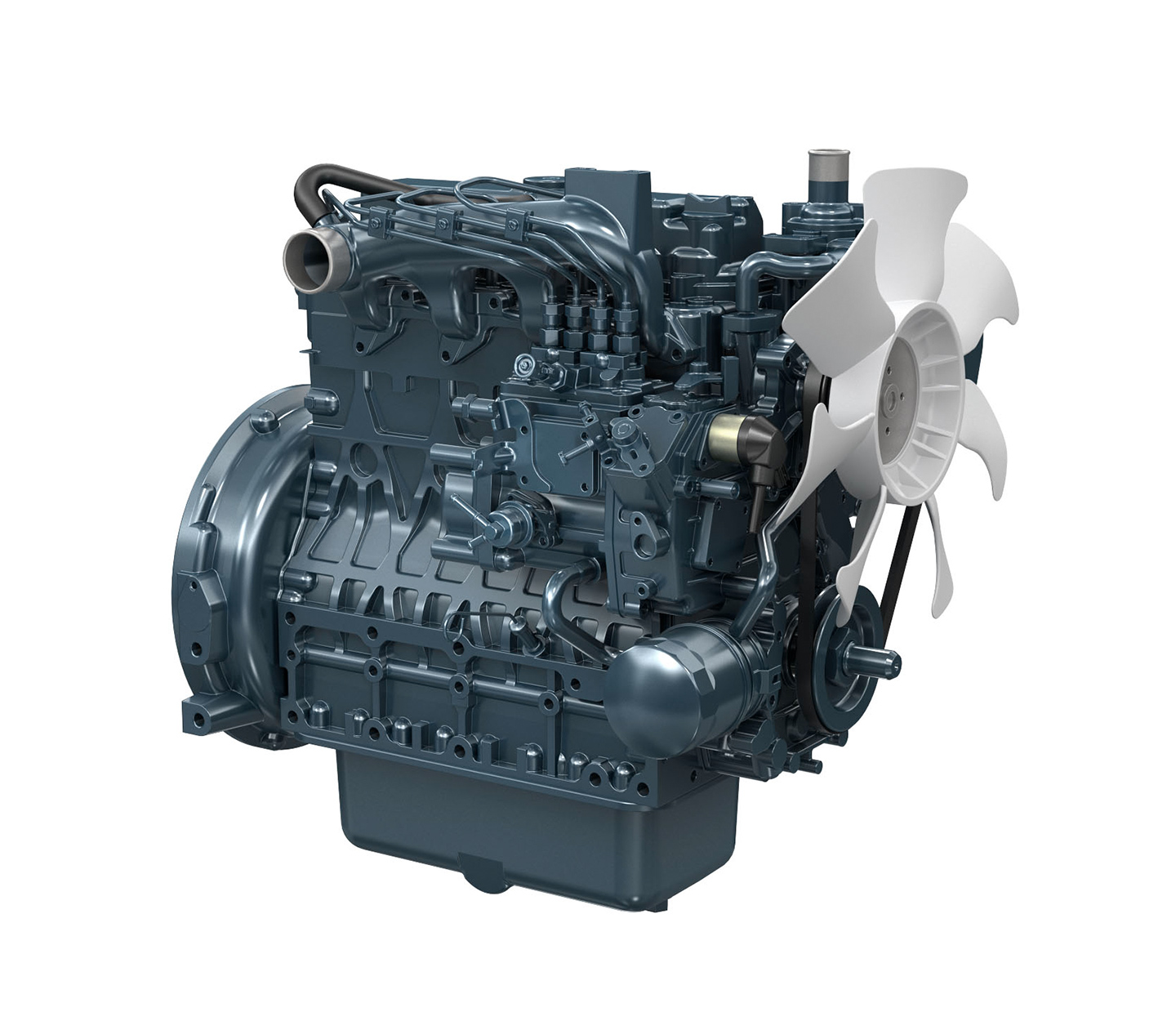

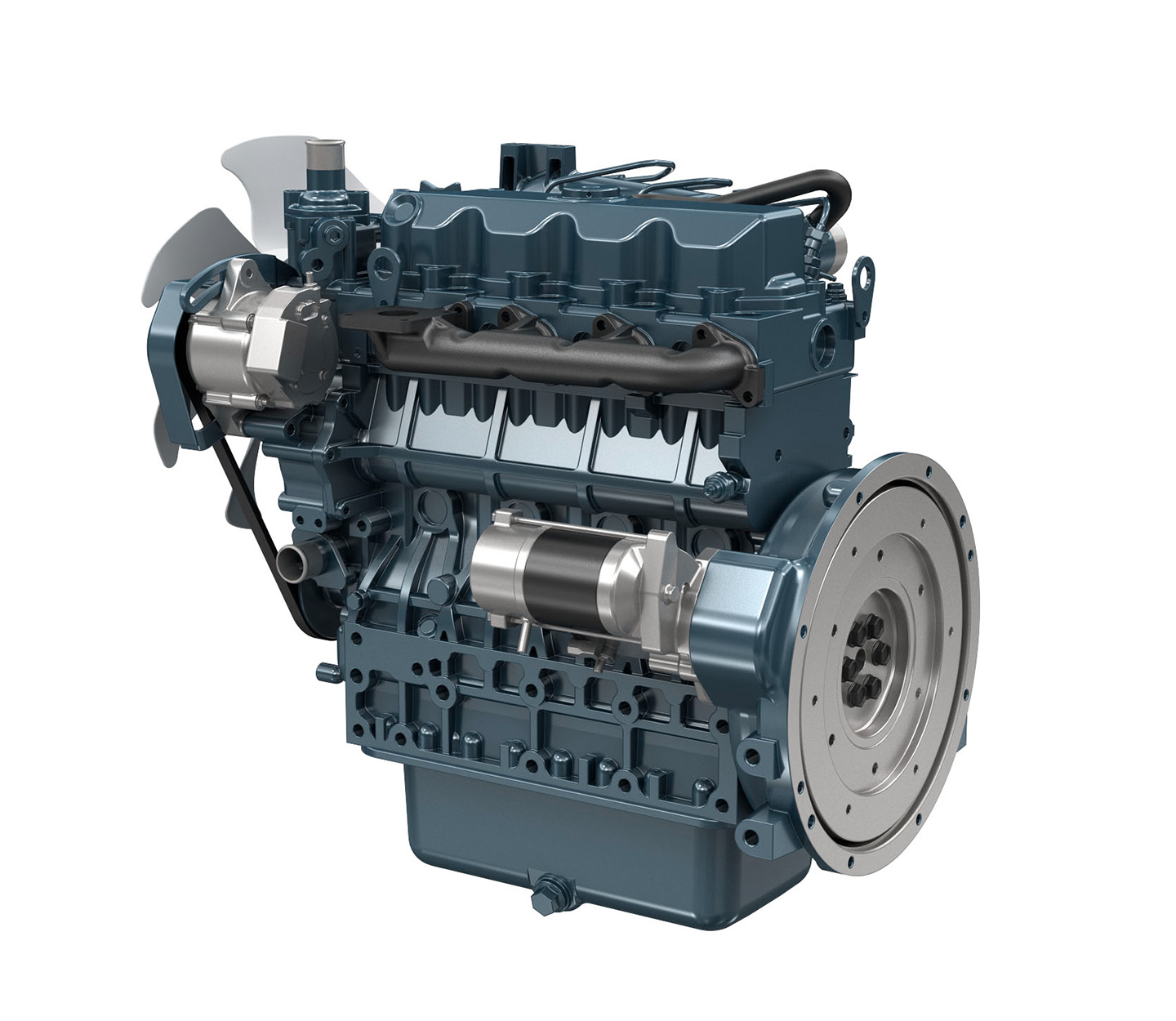

- V2003-M-E3B
- Emission regulation
- EPA/CARB interim Tier 4 level + EU Stage IIIA
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 83.0 x 92.4 (3.27 x 3.64)
- Displacement
- L (cu.in)
- 1.999 (122.0)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Rated output / speed*1
- kW (HP) / rpm
- 32.6 (43.7) / 2800
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 130.3 (96.10) / 1600
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 642 x 495 x 679 (25.3 x 19.5 x 24.9)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 180 (397)
