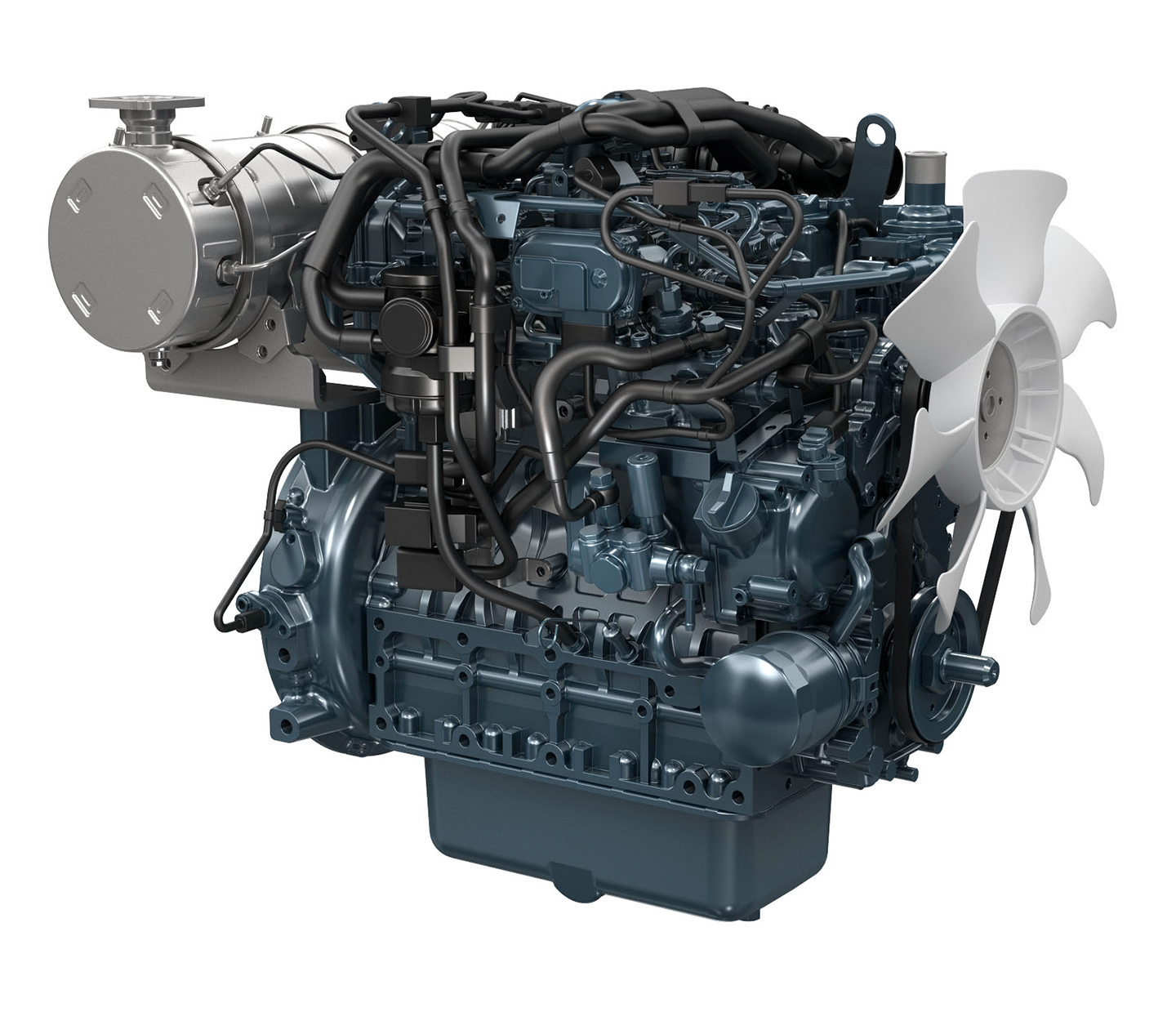

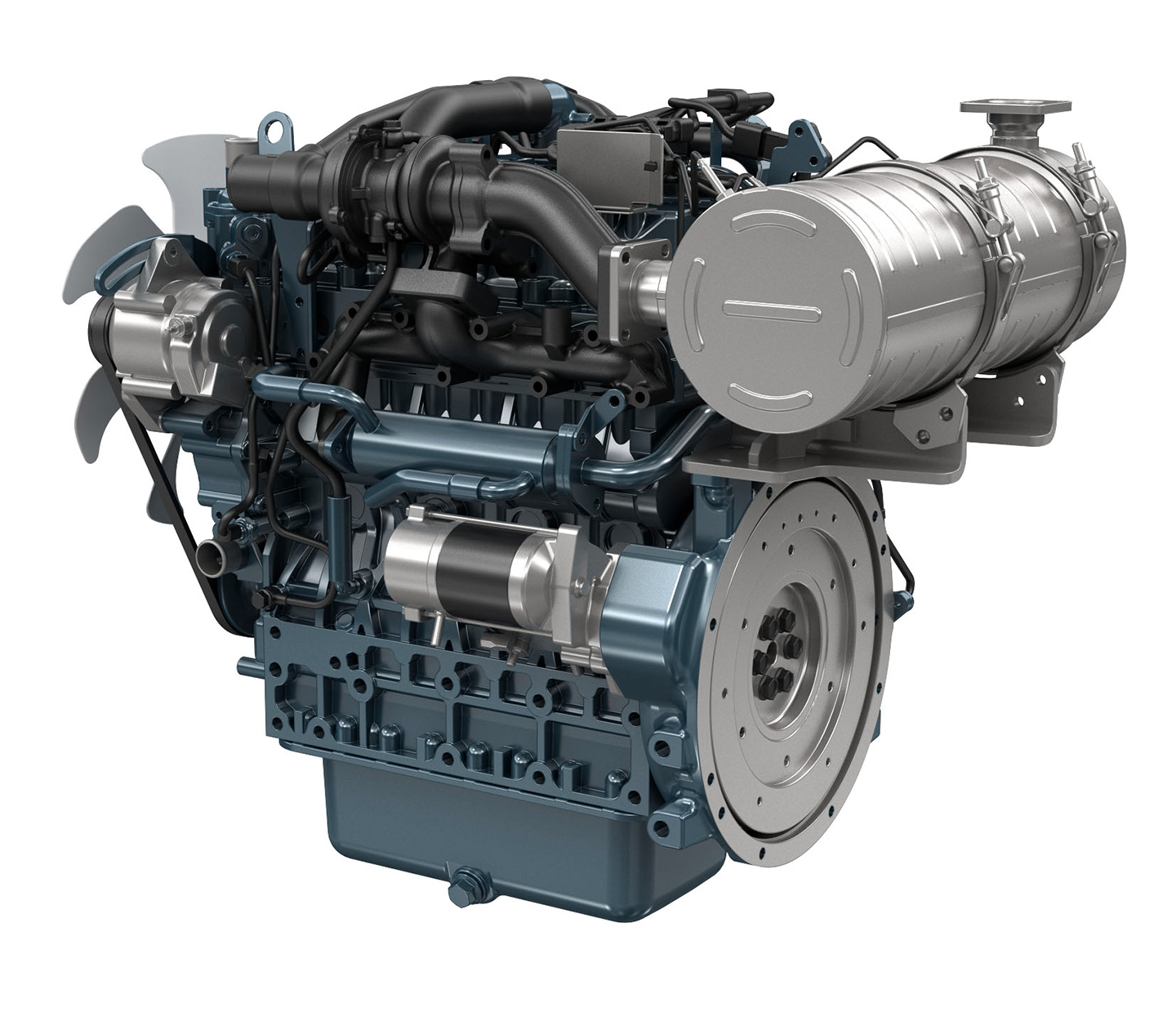

- Engine model
- V2403-CR-T-E4B
- Emission regulation
- EPA/CARB Tier 4 + EU Stage IIIB + EU StageⅤ
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 87.0 x 102.4 (3.43 x 4.031)
- Displacement
- L (cu.in)
- 2.434 (148.5)
- Aspiration
- Turbocharged
- Aftertreatment
- DOC + DPF
- Rated output / speed*1
- kW (HP) / rpm
- 48.6 (65.2) / 2700
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 198.5 (146.4) /1600
- Combustion system
- Direct injection
- Fuel system
- Common rail system
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 646 x 540 x 735 (25.4 x 21.3 x 28.9)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- 842 x 540 x 735 (33.1 x 21.3 x 28.9)
- Dry weight
- kg (lb)
- 233 (514)
