- Engine model

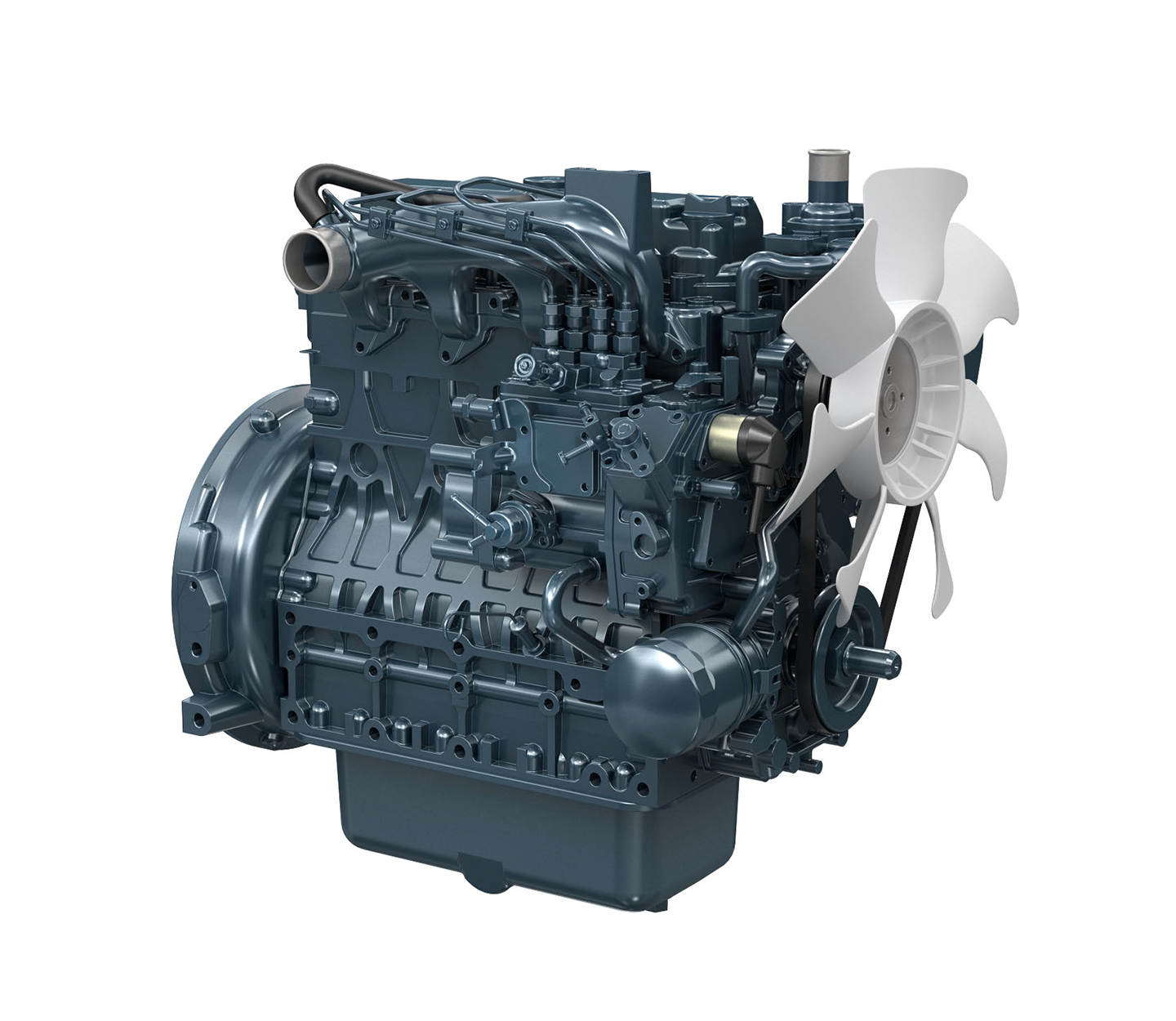

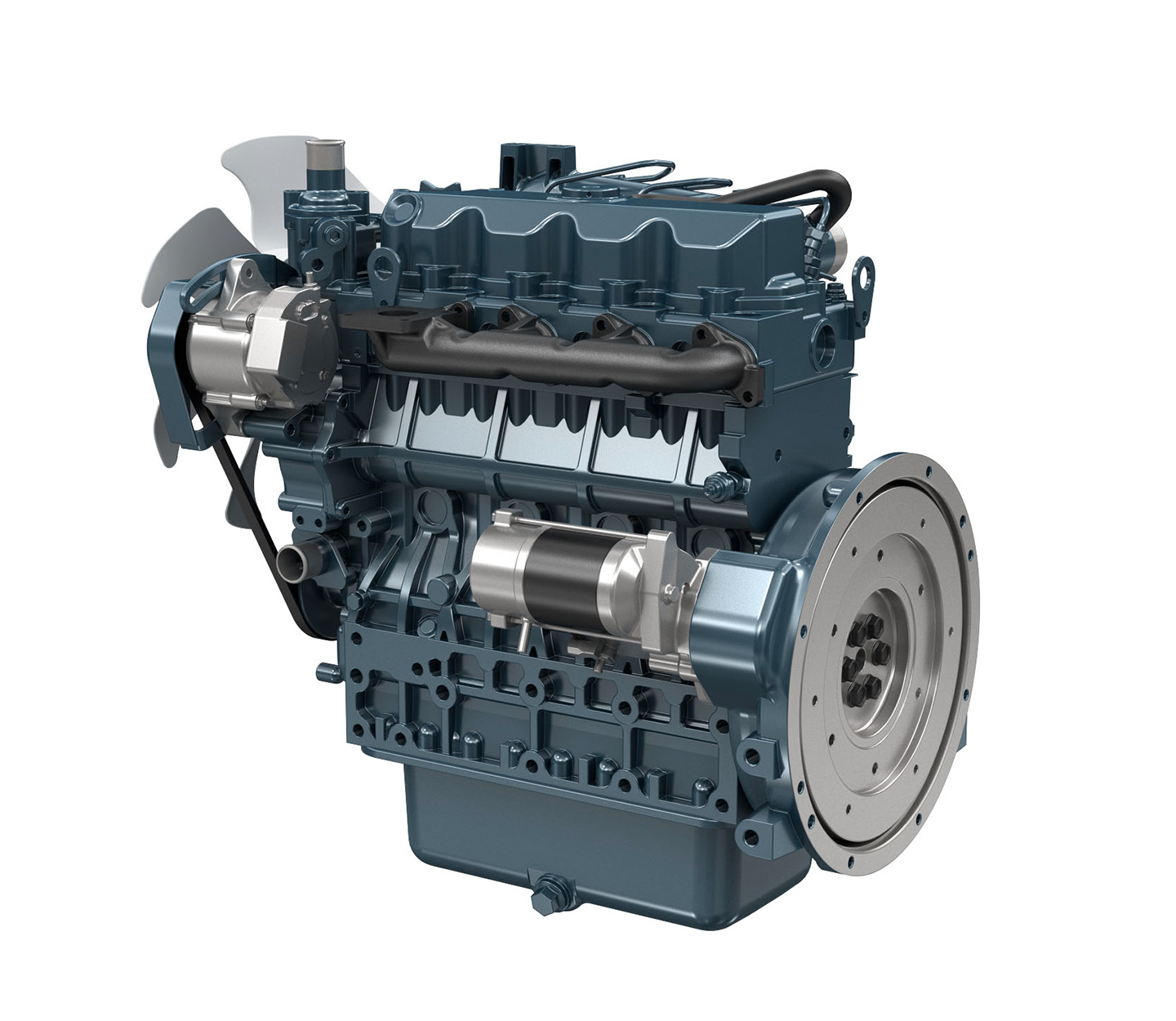

- V2403-M-E2B
- Emission regulation
- EPA/CARB Tier 2 level + EU Stage II level
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 87.0 x 102.4 (3.43 x 4.031)
- Displacement
- L (cu.in)
- 2.434 (148.5)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Rated output / speed*1
- kW (HP) / rpm
- 38.0 (51.0) / 2600
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 167.6 (123.6) / 1600
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 646 x 495 x 684 (25.4 x 19.5 x 26.9)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 184 (406)
