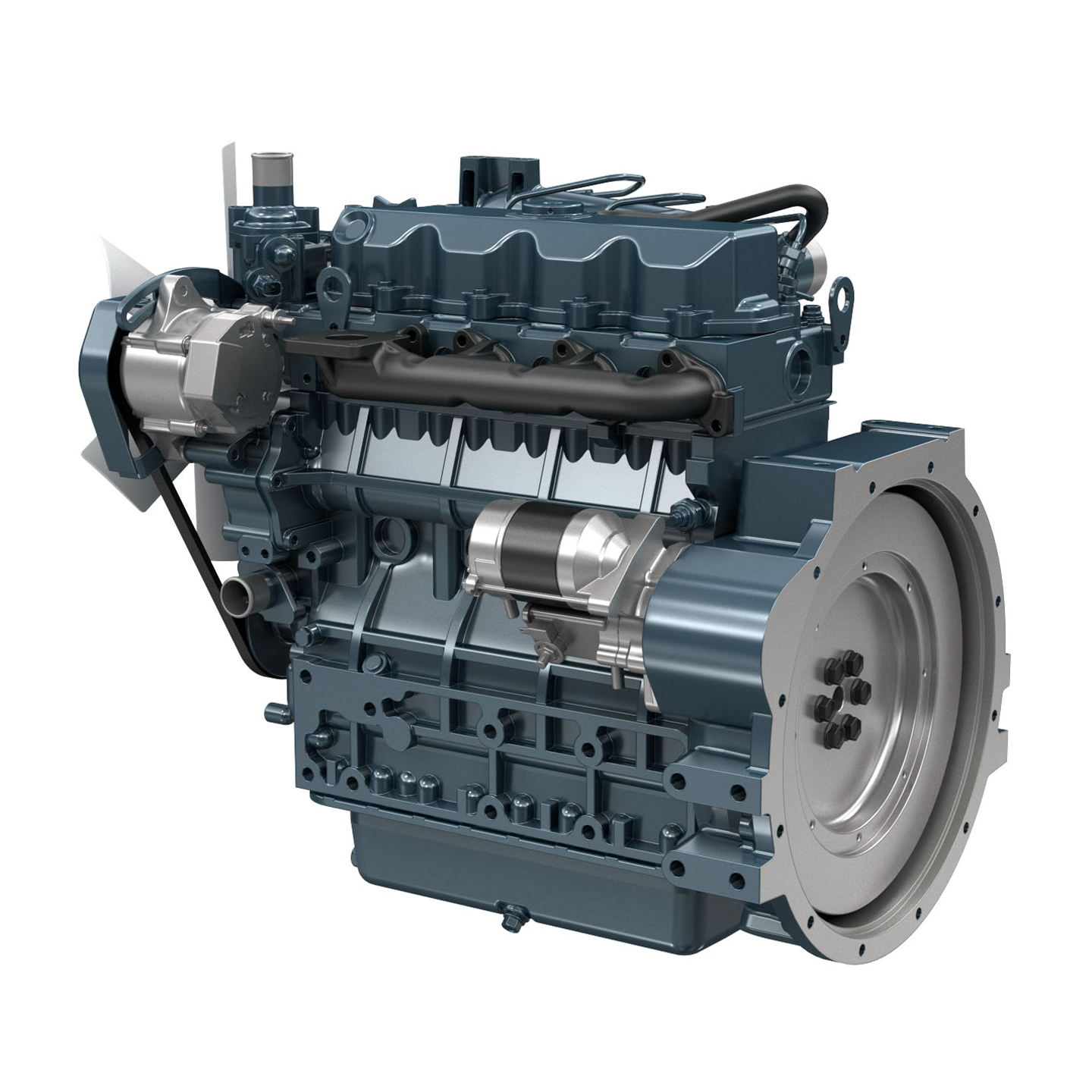

- Engine model
- V2403-M-E4-BG
- Emission regulation
- EPA Marine 2014 Tier 3
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 87.0 x 102.4 (3.43 x 4.031)
- Displacement
- L (cu.in)
- 2.434 (148.5)
- Aspiration
- Naturally Aspirated
- Aftertreatment
- -
- Stand-by output / speed*1
- kW (HP) / rpm
- 24.9 (33.4) / 1800
- Continuous output / speed*2
- kW (HP) / rpm
- 20.8 (27.9) / 1800
- Combustion system
- Indirect Injection
- Fuel system
- In-line pump
- Length x Width x Height*3
(without aftertreatment unit) - mm (in)
- 669 x 484 x 684 (26.3 x 19.1 x 26.9)
- Length x Width x Height*4
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 204 (449)
