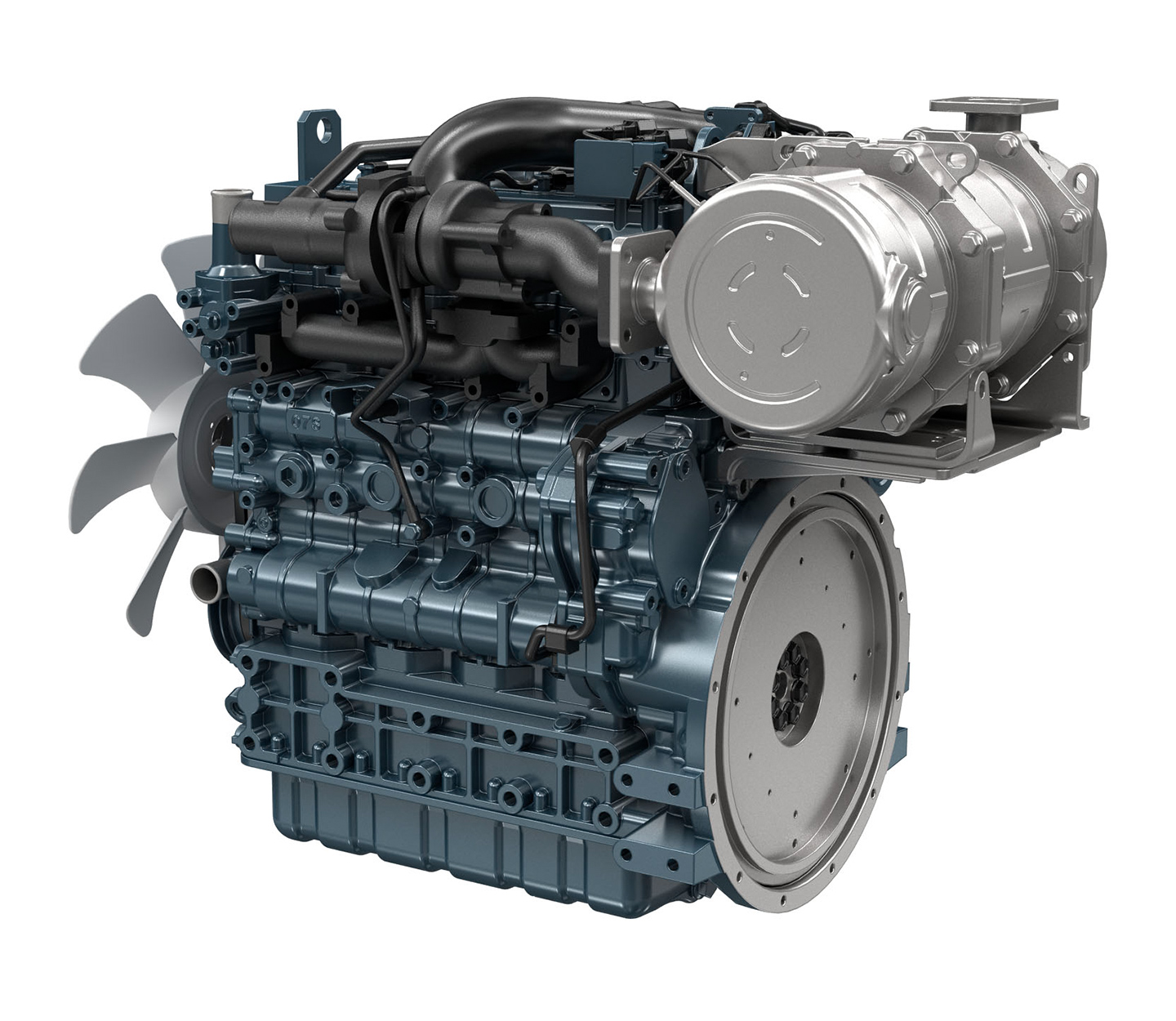

- Engine model
- V3307-CR-T-E4B
- Emission regulation
- EPA/CARB Tier 4 + EU Stage IIIB
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 94.0 x 120.0 (3.70 x 4.724)
- Displacement
- L (cu.in)
- 3.331 (203.3)
- Aspiration
- Turbocharged
- Aftertreatment
- DOC + DPF
- Rated output / speed*1
- kW (HP) / rpm
- 55.4 (74.3) / 2600
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 265.0 (195.5) / 1500
- Combustion system
- Direct injection
- Fuel system
- Common rail system
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 655 x 561 x 752 (25.8 x 22.1 x 29.6)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- 856 x 561 x 752 (33.7 x 22.1 x 29.6)
- Dry weight
- kg (lb)
- 305 (672)
