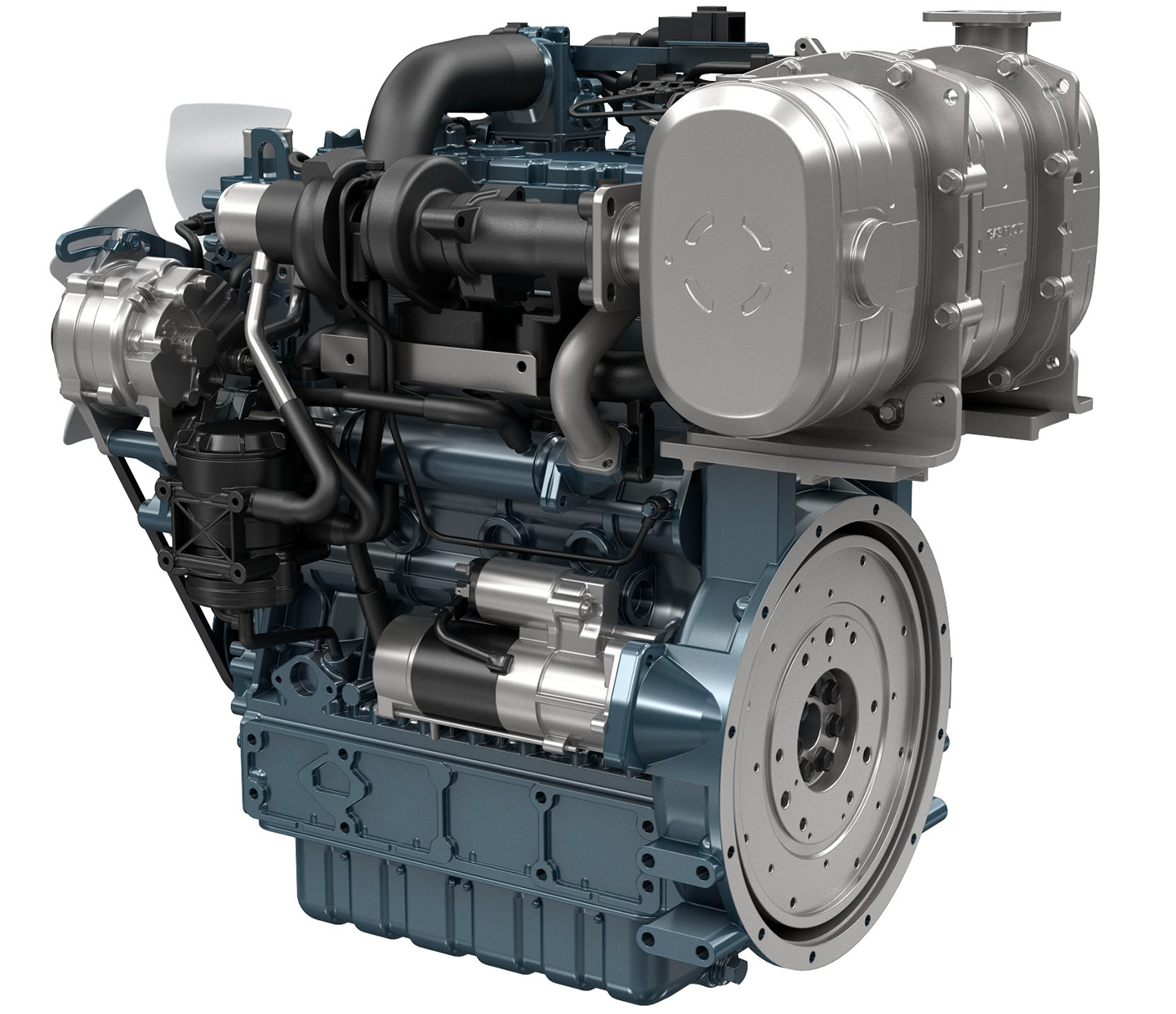

- Engine model
- V3800-CR-TE5(2200rpm)
- Emission regulation
- EU Stage V
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 100.0 x 120.0 (3.937 x 4.724)
- Displacement
- L (cu.in)
- 3.769 (230.0)
- Aspiration
- Turbocharged
- Aftertreatment
- DOC + DPF
- Rated output / speed*1
- kW (HP) / rpm
- 55.4 (74.3) / 2200
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 310.0 (228.6) / 1500
- Combustion system
- Direct injection
- Fuel system
- Common rail system
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 699 x 581 x 853 (27.5 x 22.9 x 33.6)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- 844 x 581 x 853 (33.2 x 22.9 x 33.6)
- Dry weight
- kg (lb)
- 325 (717)
