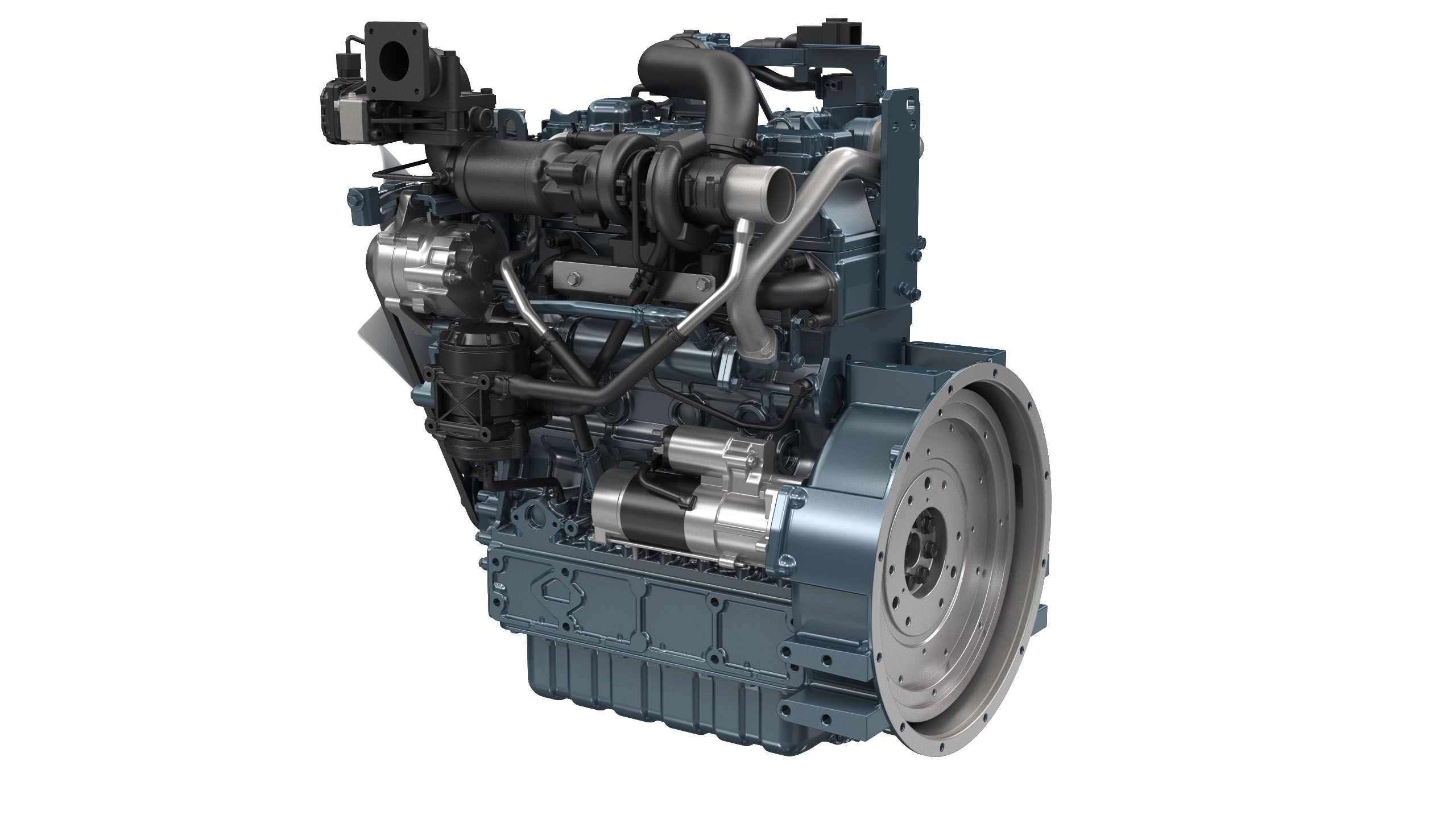

- Engine model
- V3800-CR-TE5-BG
- Emission regulation
- EU Stage V
- Type
- Vertical, water cooled
4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 100.0 x 120.0 (3.937 x 4.724)
- Displacement
- L (cu.in)
- 3.769 (230.0)
- Aspiration
- Turbocharged
- Aftertreatment
- DOC + DPF
- Stand-by output / speed*1
- kW (HP) / rpm
- 42.8 (57.4) / 1500
- Continuous output / speed*2
- kW (HP) / rpm
- 38.9 (52.2) / 1500
- Combustion system
- Direct injection
- Fuel system
- Common rail system
- Length x Width x Height*3
(without aftertreatment unit) - mm (in)
- 738 x 581 x 855 (29.1 x 22.9 x 33.7)
- Length x Width x Height*4
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 300 (661)
